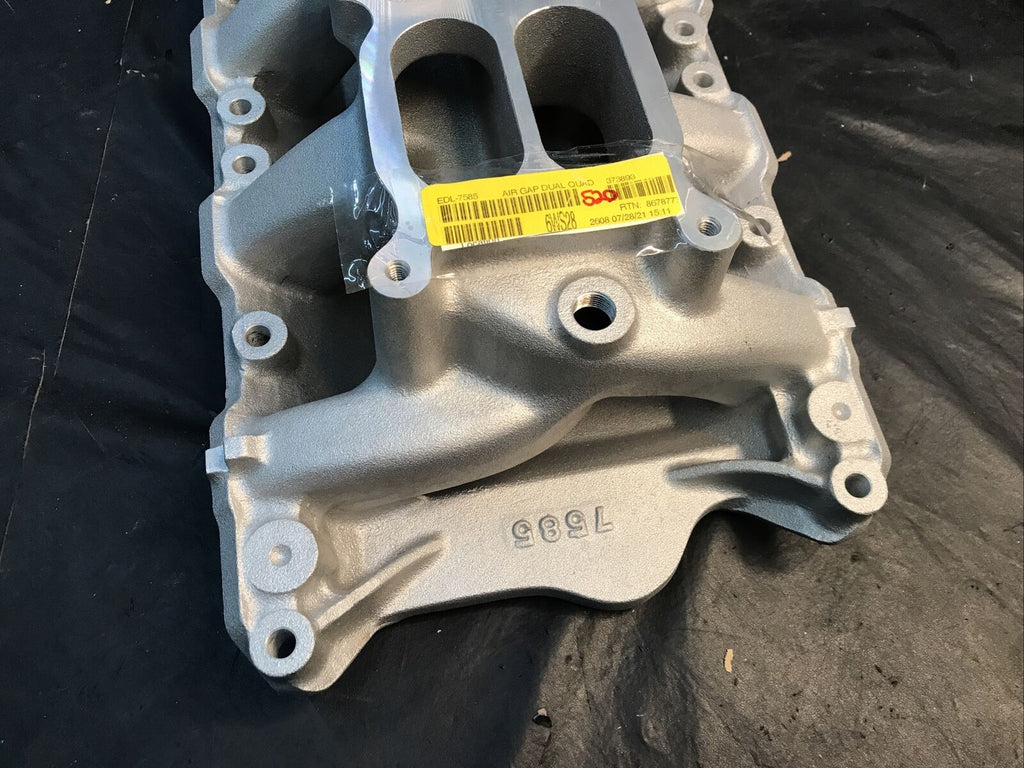

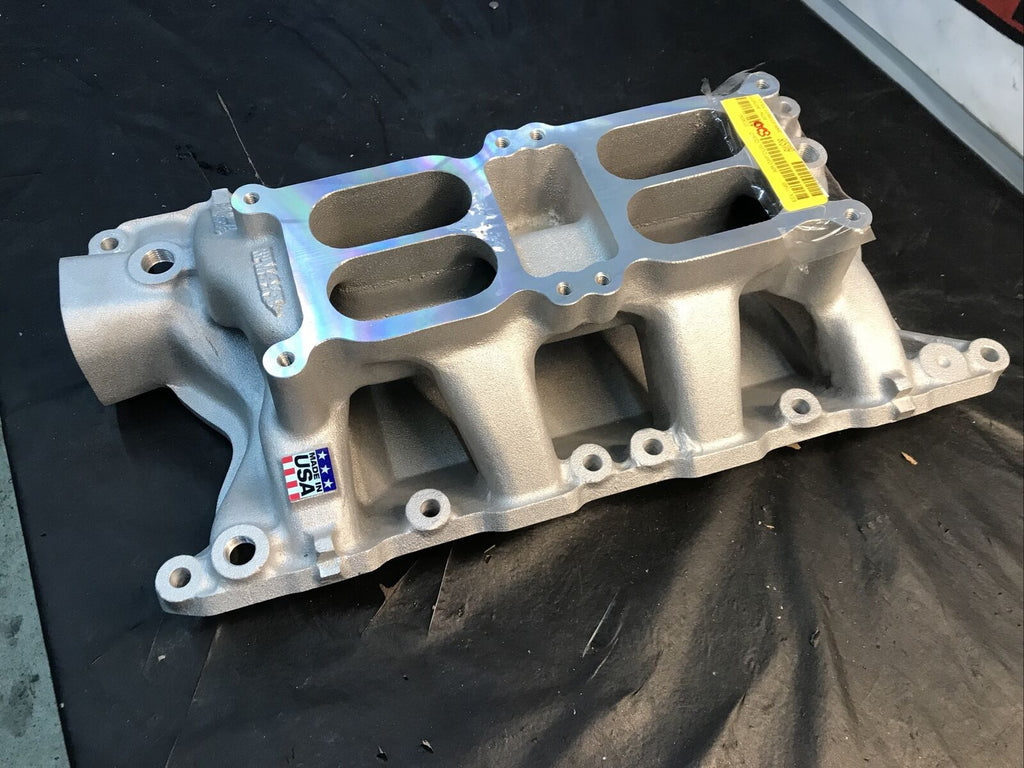

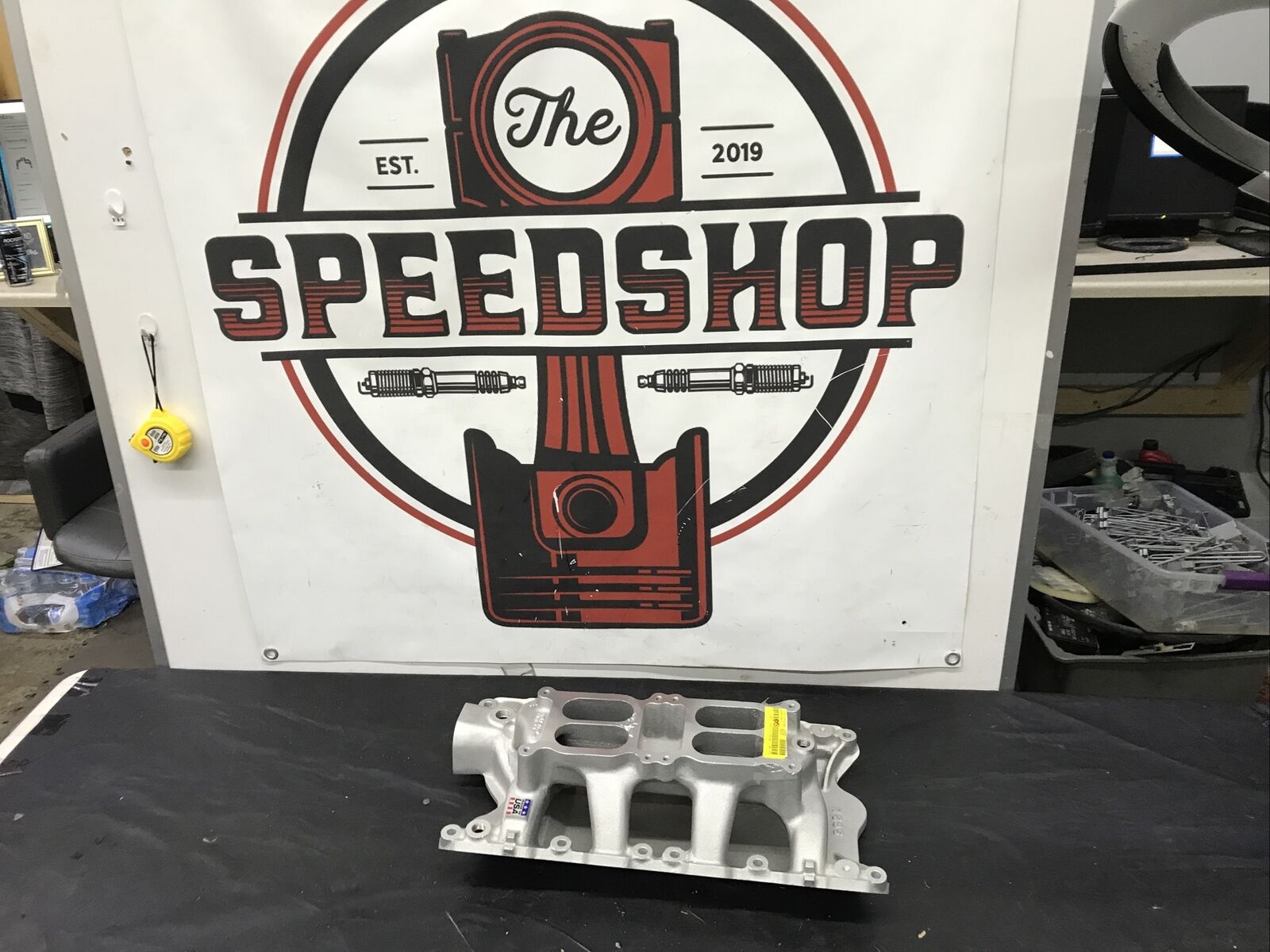

Edelbrock 7585 RPM Air-Gap Dual-Quad 351W Intake Manifold

$549.99 $549.99

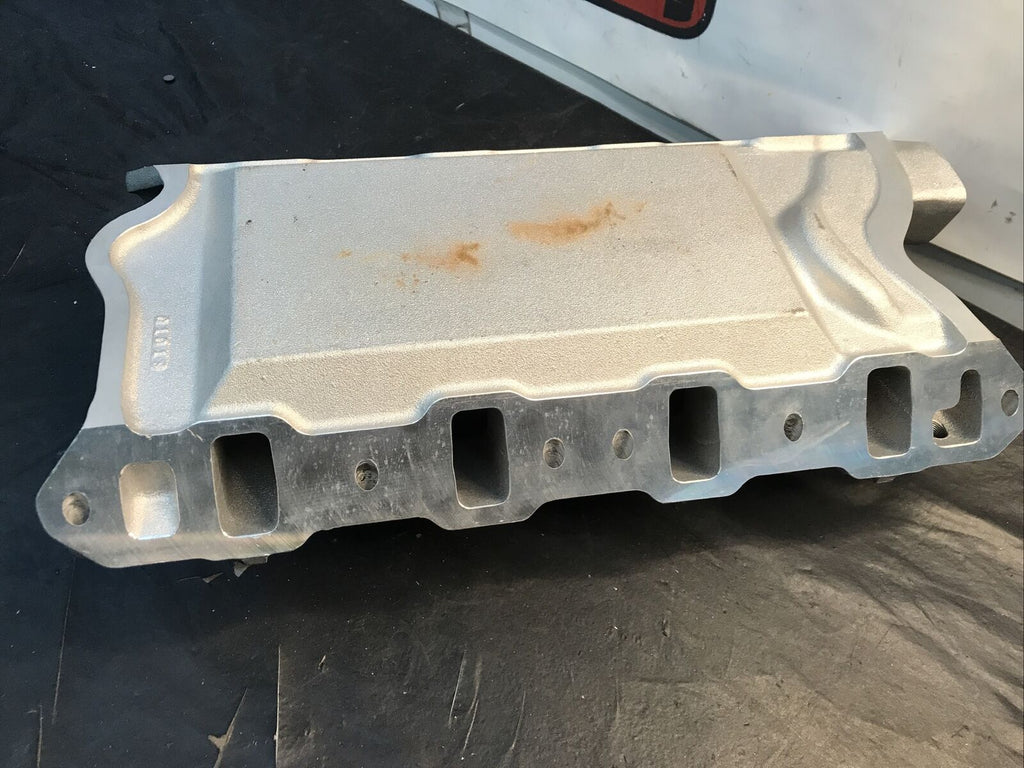

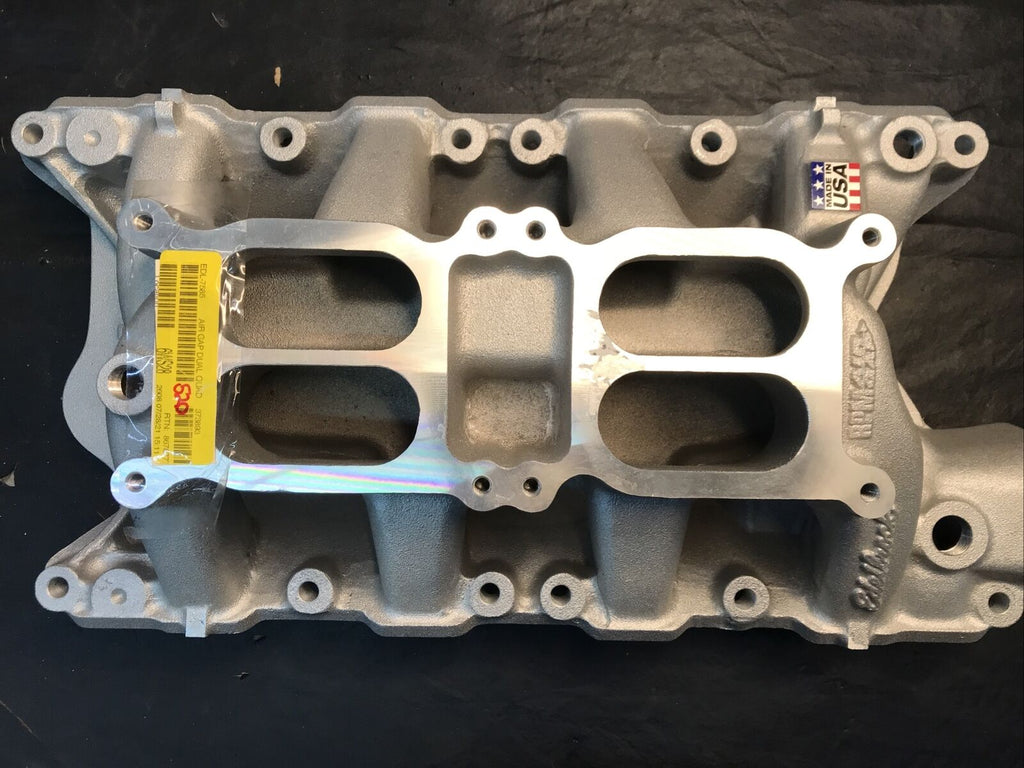

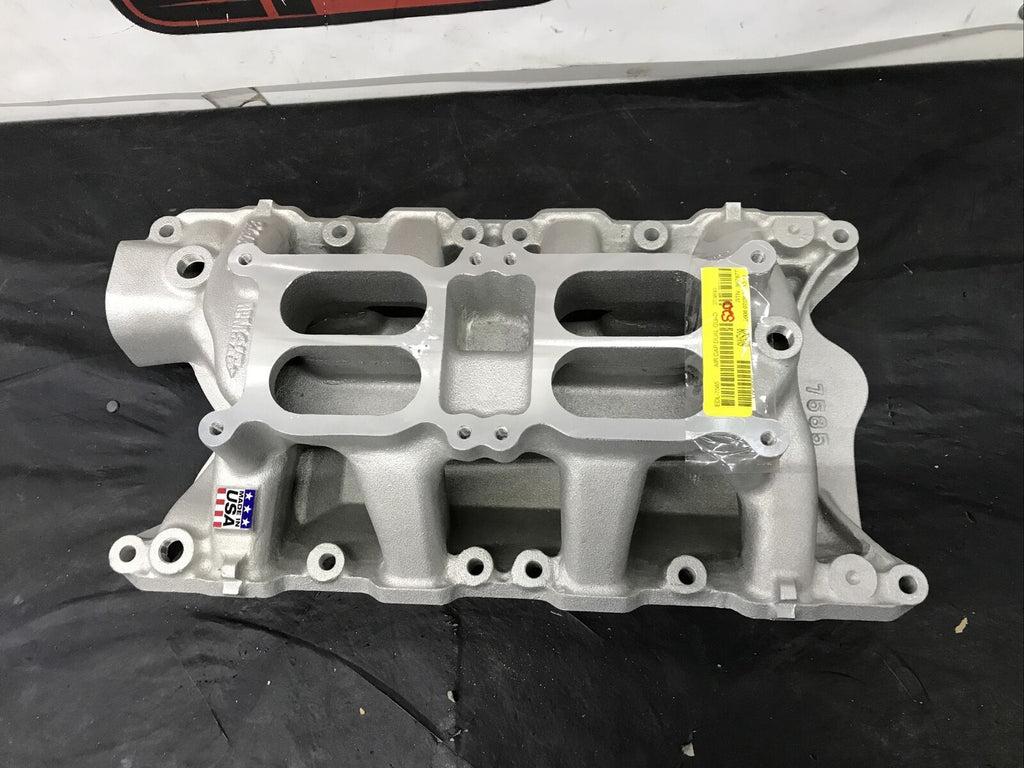

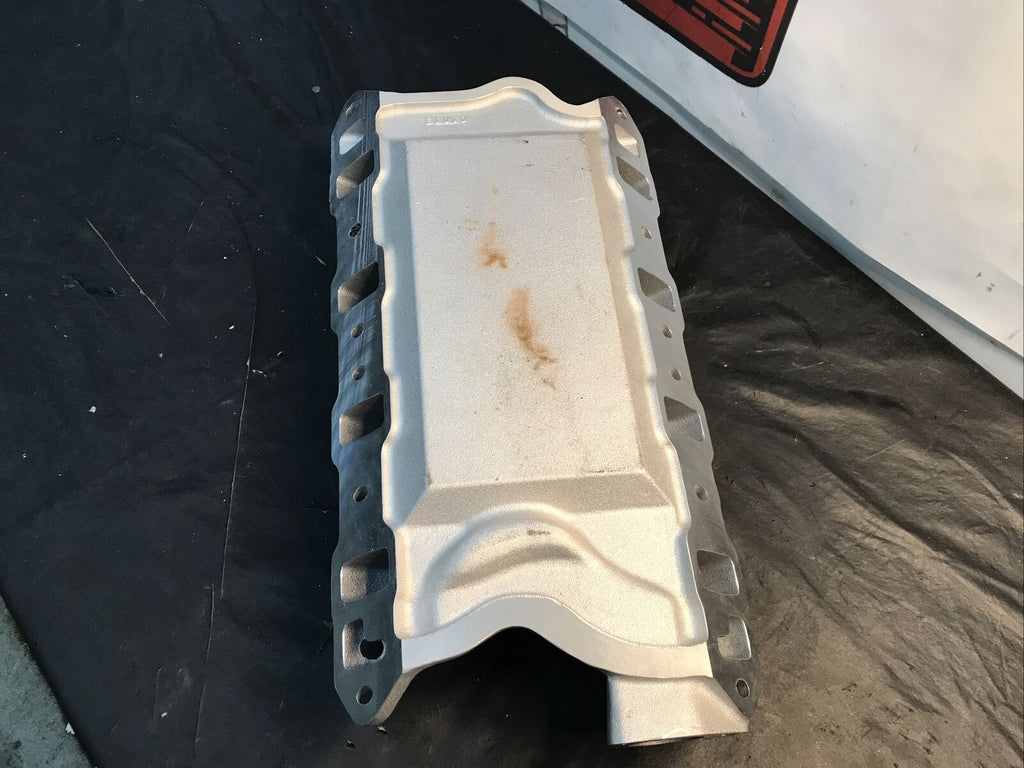

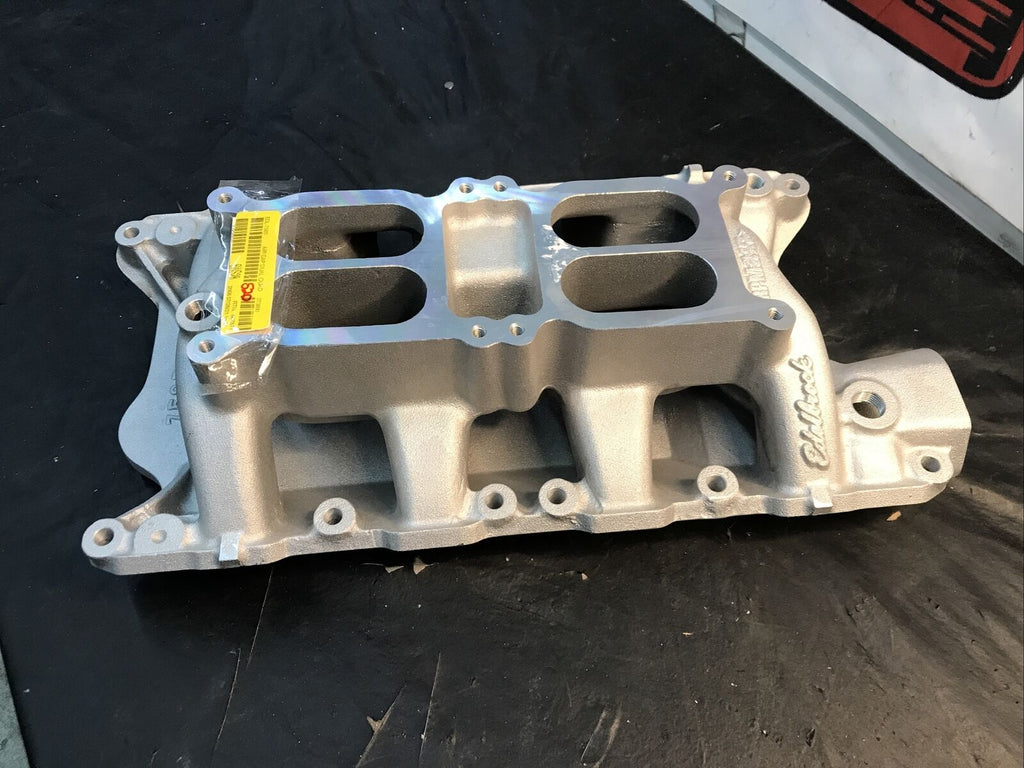

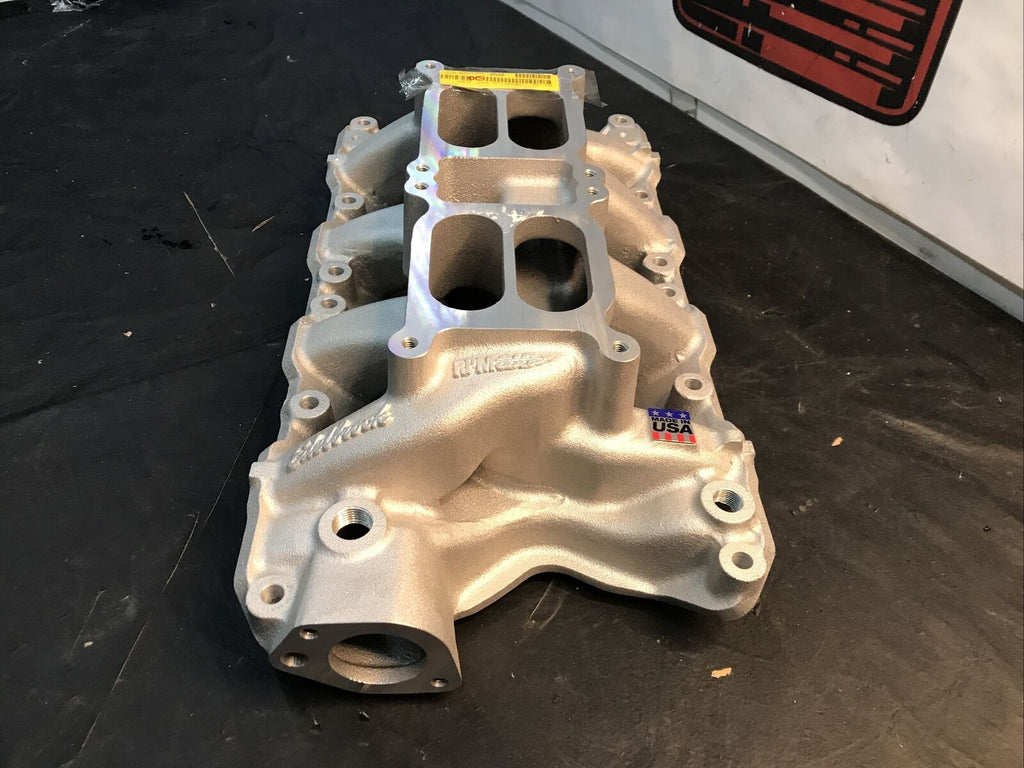

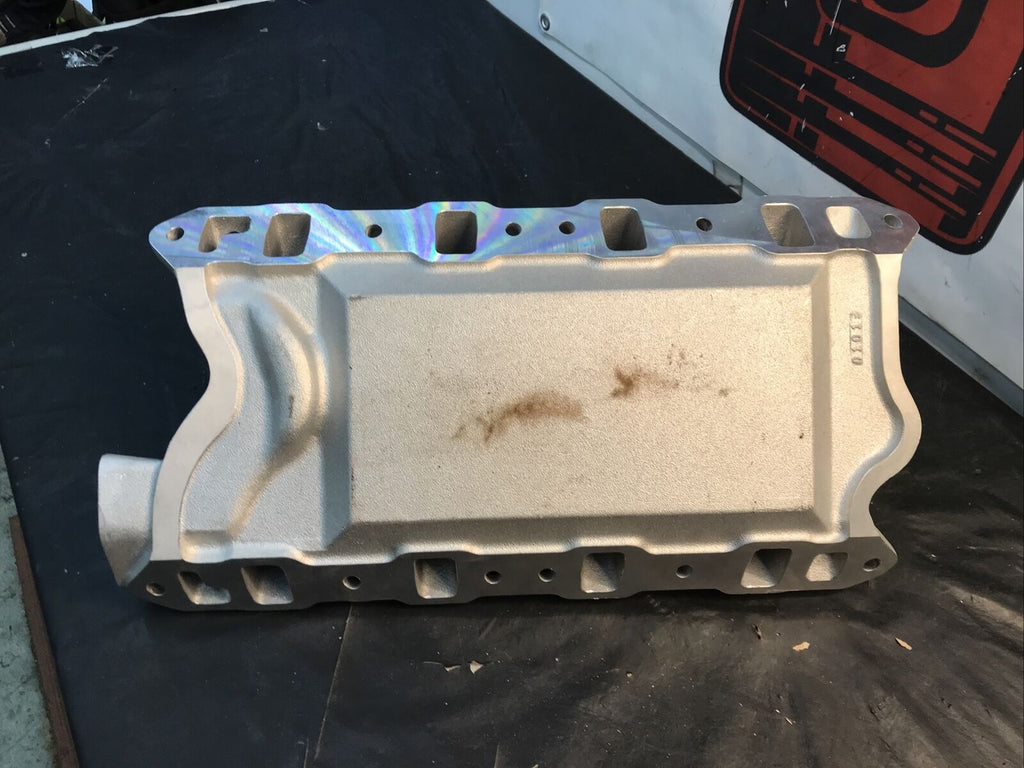

Edelbrock part #7585 RPM Air-Gap Dual-Quad 351W intake manifold is designed for 351W small-block Fords. This intake offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Includes bosses for rear water crossover. Carb center to carb center is 6-7/16".

NOTE: Ford 351 Windsor applicatons using the 7585 intake manifold MUST USE A SMALL-CAP DISTRIBUTOR. A factory Ford “Small-Cap”,
MSD “Street Pro-Billet” (MSD #8478), MSD “Pro-Billet Small Diameter” (MSD #8578), or equivalent distributor must be used to provide clearance
to the rear runners of the intake manifold.

Ford

Designed for 1969 and later high performance 351 Windsor engines with Edelbrock heads, OEM 12- or 16-bolt heads or equivalent. Will not fit "Boss 351" Cleveland. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar throttle cable bracket & springs p/n 625-SRK-4000.

Installation Notes:
  • Manifold Height: (A) 4.93", (B) 5.56"
  • Carburetor Pad Height: 5.37''
  • Port exit dimensions: 1.05" x 1.89"
  • Manifold not equipped with EGR.

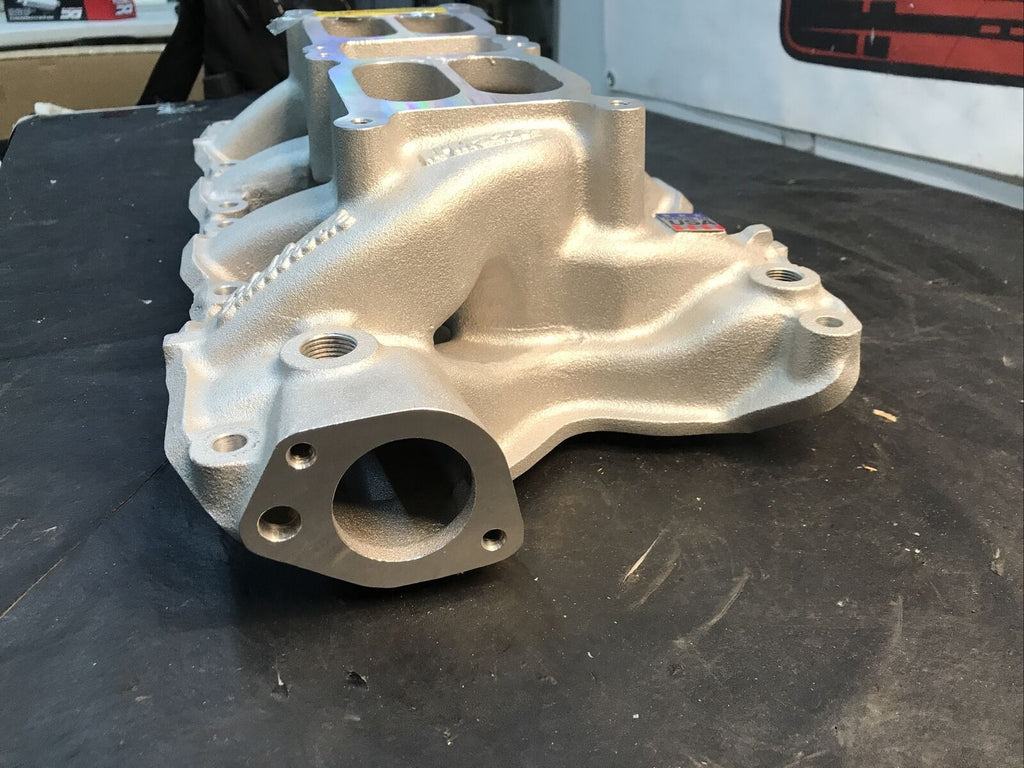

  • Includes bosses for rear water crossover.
  • Recommended Intake Gaskets: JEGS p/n  555-210200 (For van installations use OEM Ford "van" intake gasket set)

    Carburetor Recommendations:
  • Edelbrock Thunder AVS 500cfm Carburetor Manual Choke p/n 350-1804 , Electric Choke p/n 350-1803

    •

    Specifications:

    Usage
    Street/Hi-Performance
    Position
    N/A
    Engine Make/Size
    Ford 5.8L/351W
    Emission
    Without EGR
    Cylinder Head Type
    Standard
    RPM Range
    1500-6500
    Number Of Carbs
    Two
    EGR
    Without EGR
    Quantity
    Sold individually
    Engine Block Style
    Stock/OEM standard Deck
    Engine Block Style
    Stock/OEM standard deck
    Intake Section Included
    Complete
    Basic Operating RPM Range
    1,500-6,500
    Intake Finish
    Natural
    Intake Material
    Aluminum
    Intake Style
    Dual quad
    Carburetor Quantity
    Two
    Manufacturer's Part Number:
    7585
