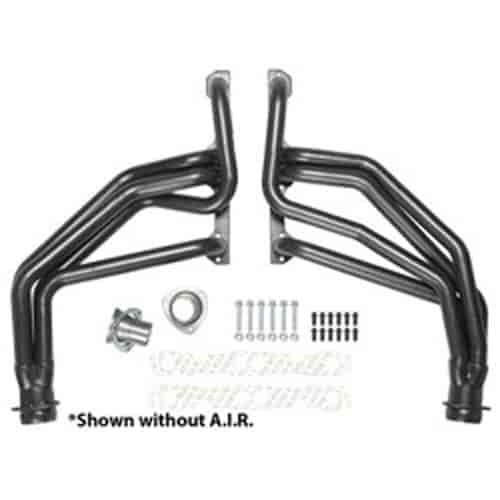

Hedman 69093 Standard Duty Full Length Headers for 1967-91 Chevy/GMC Truck/SUV
hedman

Hedman 69093 Standard Duty Full Length Headers for 1967-91 Chevy/GMC Truck/SUV

Regular price $369.99 Sale price $409.99 Unit price per

Hedman 69093 Standard Duty Full Length Headers for 1967-91 Chevy/GMC Truck/SUV

GM Trucks

1967-87 C10 PICKUP, C20 PICKUP, C30 PICKUP, C15/C1500, C25/C2500, C35/C3500,K10 PICKUP, K20 PICKUP, K30 PICKUP, K15/K1500, K25/K2500 283-400ci; 2WD
1967-91 BLAZER, JIMMY 283-400ci; 2WD & 4WD
1967-91 C10, C20 , C15/C1500, C25/C2500, K10, K20, K15/K1500, K25/K2500, R10, R20, R1500, R2500, V10, V20, V1500, V2500 SUBURBAN 283-400ci; 2WD & 4WD
  • Must modify rotary A/C bracket.
  • Elite replacement gasket #27520.
  • Includes parts necessary to retain emission devices. (50 State)
  • Not legal for sale or use in California on pollution controlled motor vehicles.
  • Some vehicles may encounter clutch shaft interference when cross shaft location is located under or behind the driver's side rear exhaust port. Use #69092 without A.I.R. Use #69093 with A.I.R. Order Elite #69892.
  • With A.I.R. system.
  • Modification to stock exhaust required to retain catalytic converter.
  • For vehicles 1964 through 1974 with A.I.R. system, considered as O.E.M. replacement parts and do not require an E.O. #, when existing emission controls are not removed from vehicle.
  • 1975-1982 only, 50 state legal for these years.
  •

    Specifications:

    Application
    Automotive
    Bolts/Studs Included
    Yes
    Catalytic Converter(s) Included
    No
    Collector Attachment
    Ball and socket flange
    Cross Over Pipe Included
    No
    Cylinder Head Port Shape
    Round
    Flange Style
    Standard
    Gaskets Included
    Yes
    Header Finish
    Painted
    Header Material
    Steel
    Header Style
    Full-length
    Motor Mounts Included
    No
    Primary Tube Gauge
    18-gauge
    Quantity
    Sold as a pair
    Reducers Included
    Yes
    Transmission Mount Included
    No
    Tube Direction
    Down Swept
    Tuned
    No
    Weld-Up
    No
    Collector Diameter
    3 in (76.2 mm)
    Primary Tube Diameter
    1.625 in (41.3 mm)
    Manufacturer's Part Number:
    69093
