hedman
1967-86 Blazer/Jimmy/Suburban/Pickup 283-400
Tube Size: 1-5/8"
Collector Size: 3"
Not applicable or intended for street or highway use. Legal only for racing vehicles which may never be used upon a highway.
Without smog injection or injection heads.
Modification to stock exhaust required to retain catalytic converter.
A/C equipped vehicles require bracket #500-20110 (Large piston type compressor).
Not legal for sale or use in California on pollution controlled motor vehicles.
Some vehicles may encounter clutch shaft interference when cross shaft location is located under or behind the driver's side rear exhaust port. Use #500-69092 without A.I.R. Use #500-69093 with A.I.R. Order Elite #500-69892.
Must modify rotary A/C bracket.

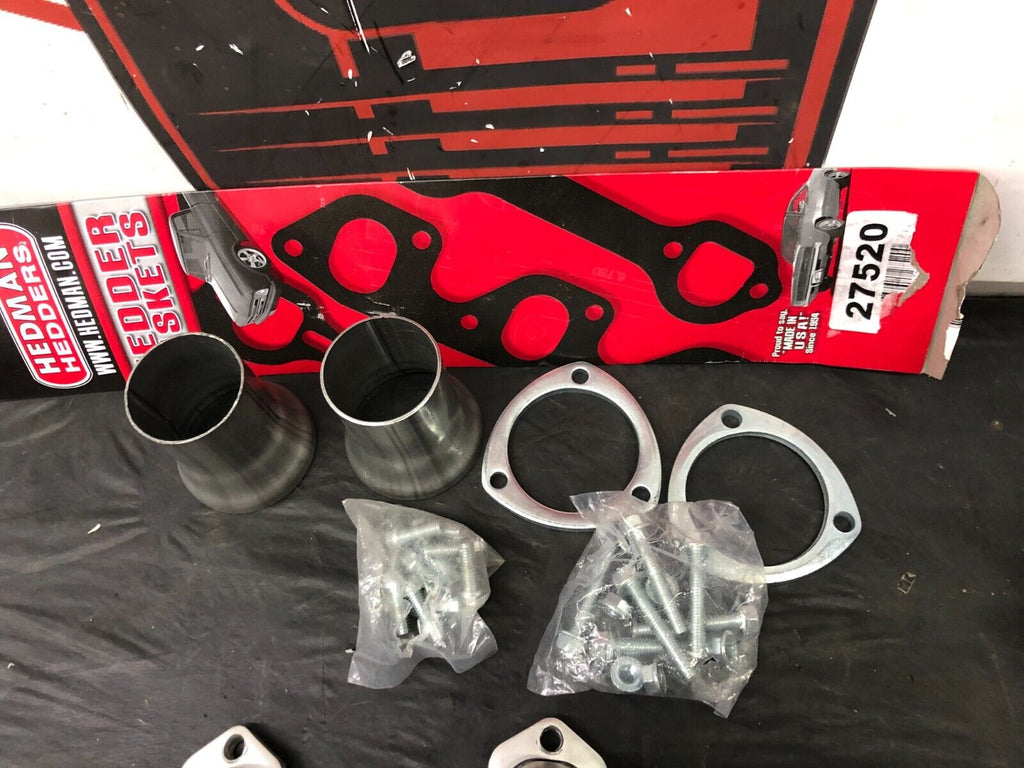

Elite replacement gasket #500-27520.

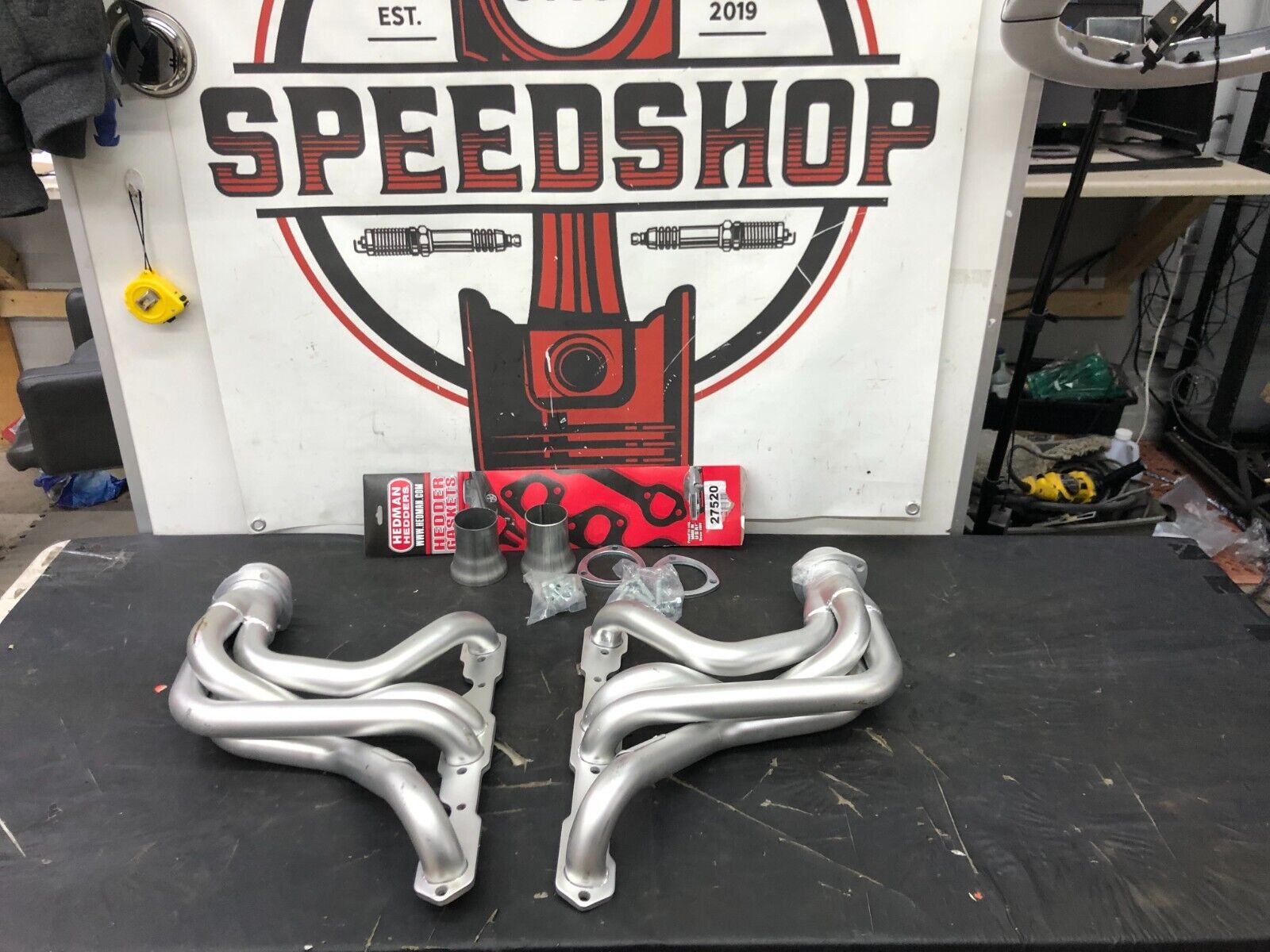

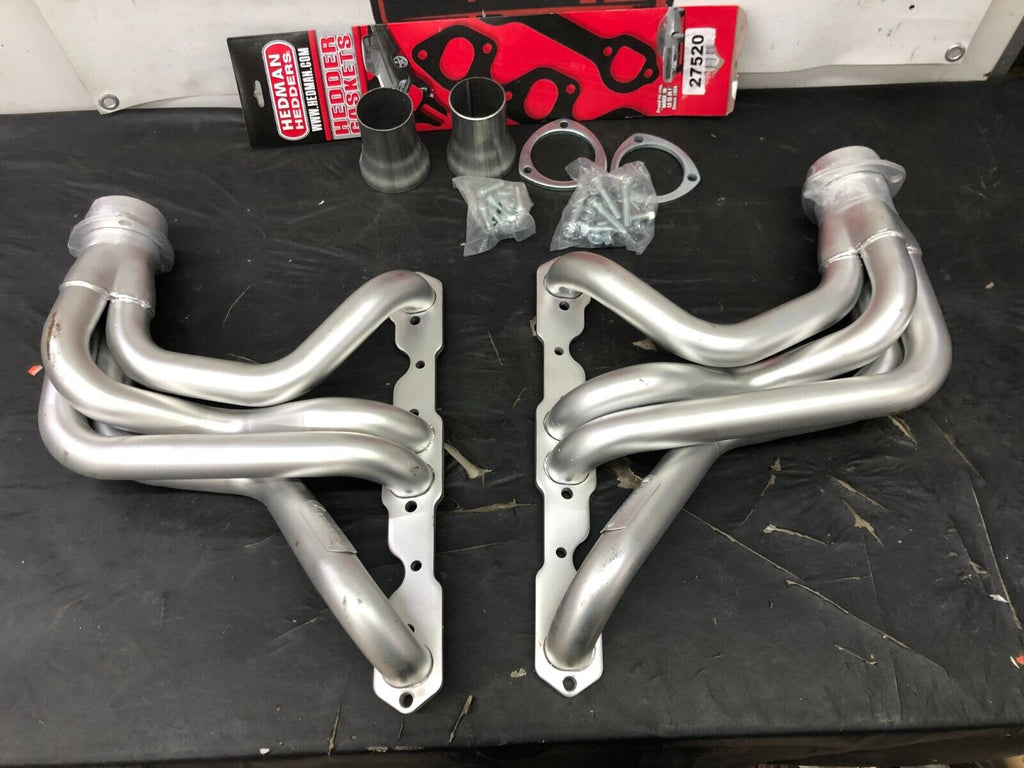

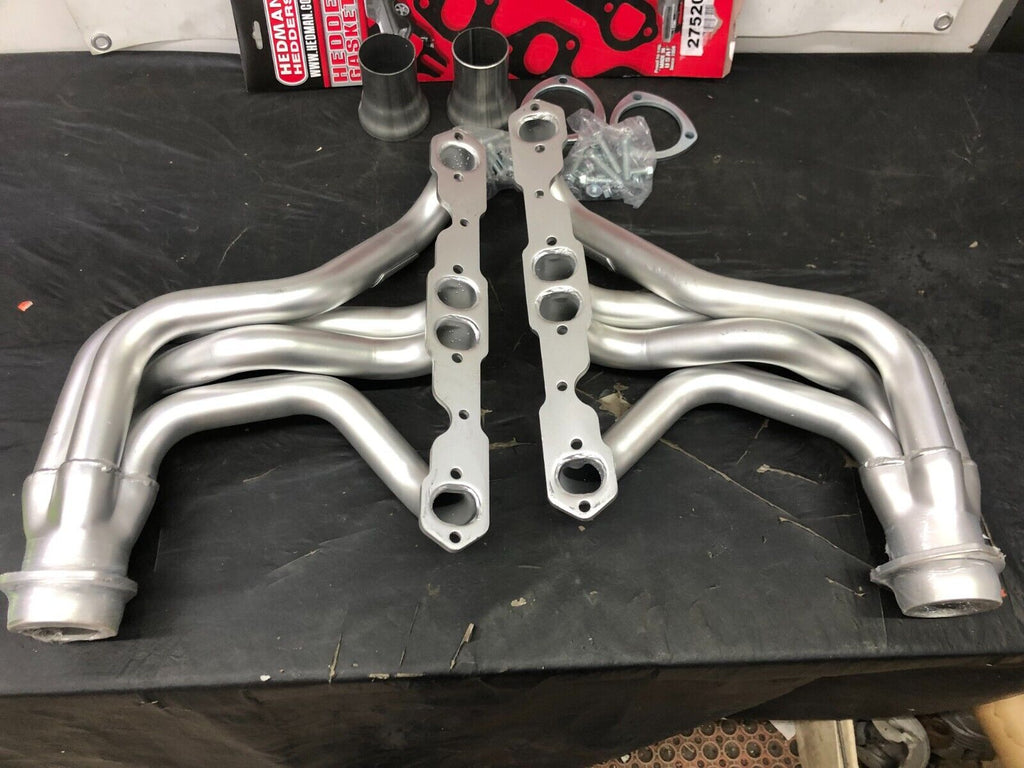

Hedman 69830 HTC Coated Headers 1967-86 Blazer/Jimmy/Suburban/Pickup
Regular price
$489.95
Sale price
$529.95
Hedman Elite Ultra-Duty HTC Coated Full Length Headers 1967-86 Blazer/Jimmy/Suburban/Pickup 283-400
Elite Ultra-Duty HTC Coated Full Length Headers
GM Trucks/Vans/Motorhomes
Specifications:
Application
Automotive
Bolts/Studs Included
Yes
Catalytic Converter(s) Included
No
Collector Attachment
Ball and socket flange
Cross Over Pipe Included
No
Flange Style
Standard
Gaskets Included
Yes
Header Finish
Thermal coated
Header Material
Steel
Header Style
Full-length
Motor Mounts Included
No
Primary Tube Gauge
14-gauge
Quantity
Sold as a pair
Reducers Included
Yes
Transmission Mount Included
No
Tube Direction
Down Swept
Tuned
No
Weld-Up
No
Collector Diameter
3 in (76.2 mm)
Primary Tube Diameter
1.625 in (41.3 mm)
Manufacturer's Part Number:
69830
Shipping Weight:
32.1
Package Height:
39.25
Package Depth:
9.5
Package Width:
18.75
Part Category:
Performance Parts
Part Fitment:
Semi Universal
