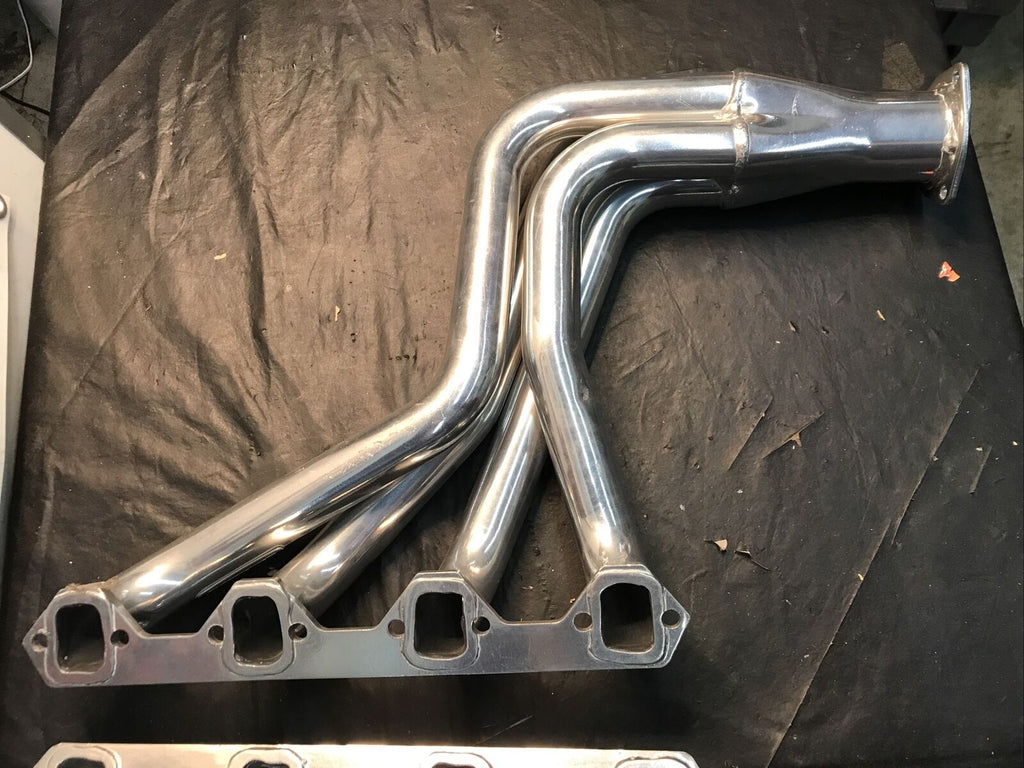

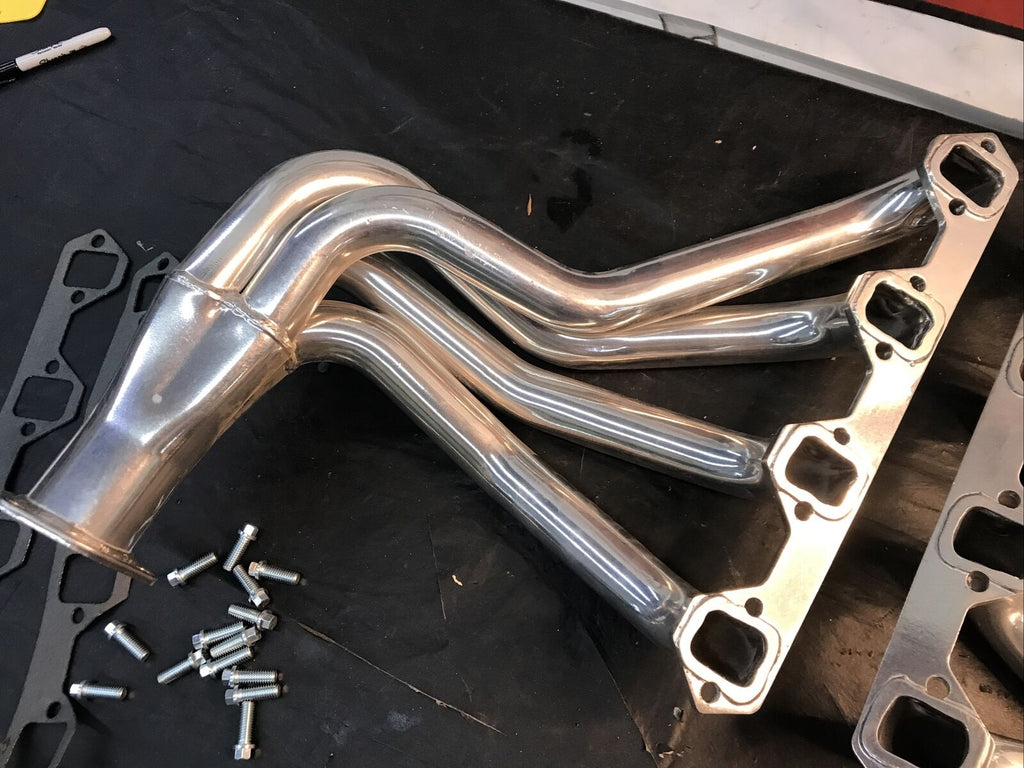

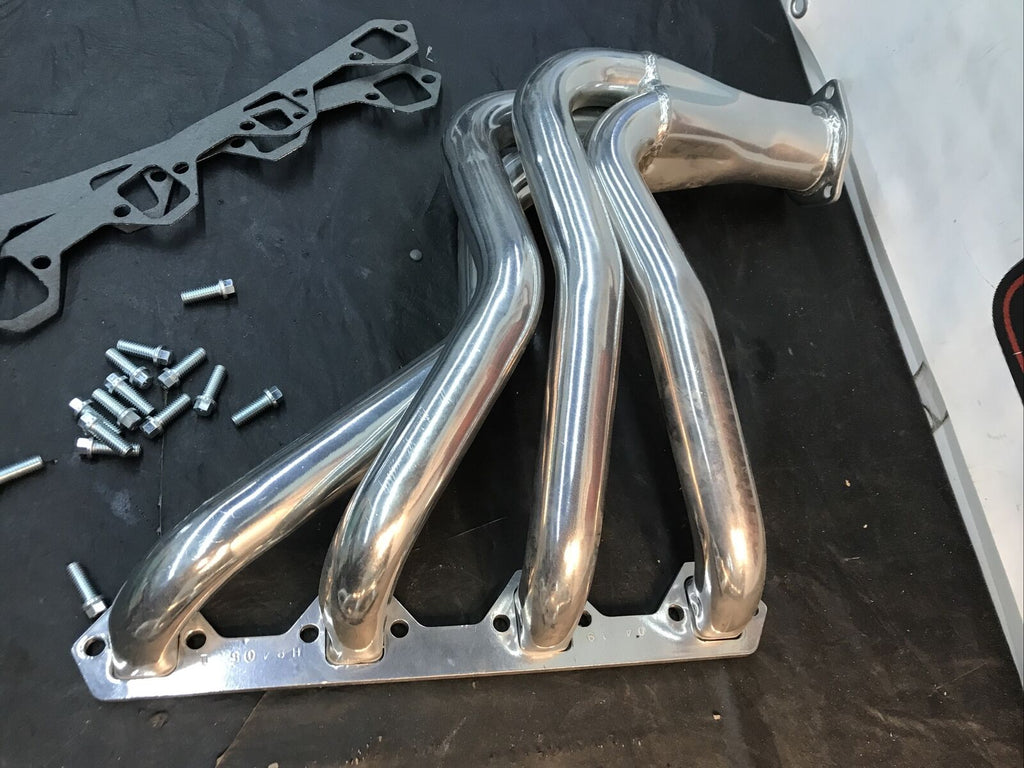

Patriot H8405-1 Exhaust Ford Specific Fit Headers 1965-1974 Ford F-150/F-250 2WD

$399.99 ~~$455.99~~

Patriot Exhaust Ford Specific Fit Headers 1965-1974 Ford F-150/F-250 2WD

Ford Specific Fit Headers

1965-1974 Ford F-150/F-250 2WD

1965-1974 Ford F-250/F-350 4WD

260-302W Small Block

1-5/8'' Primary Tubes

2-1/2'' Collector

SAP Port Shape

Ceramic Coated

Overview

Brand:

Patriot Exhaust

Manufacturer's Part Number:

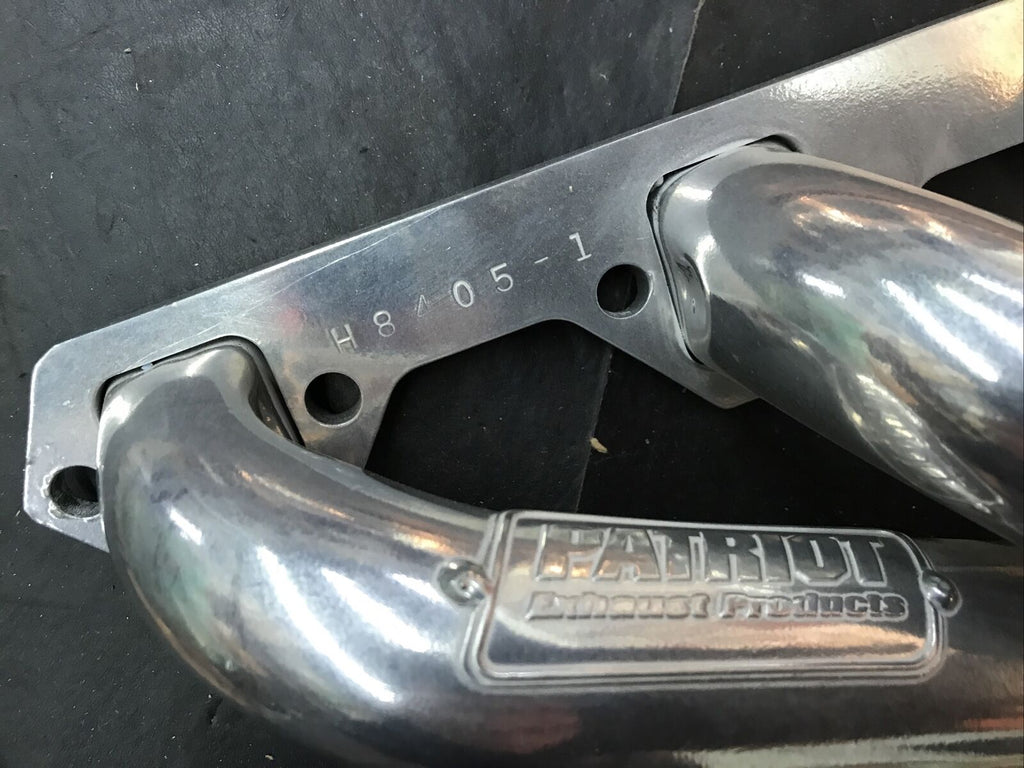

H8405-1

Part Type:

Headers

Product Line:

Patriot Full-Length Headers

Summit Racing Part Number:

PTE-H8405-1

UPC:

694342512279

Header Style:

Long tube one-piece

Header Material:

Steel

Header Color:

Silver ceramic coated

Weld-Up:

Primary Tube Outside Diameter (in.):

1 5/8 in.

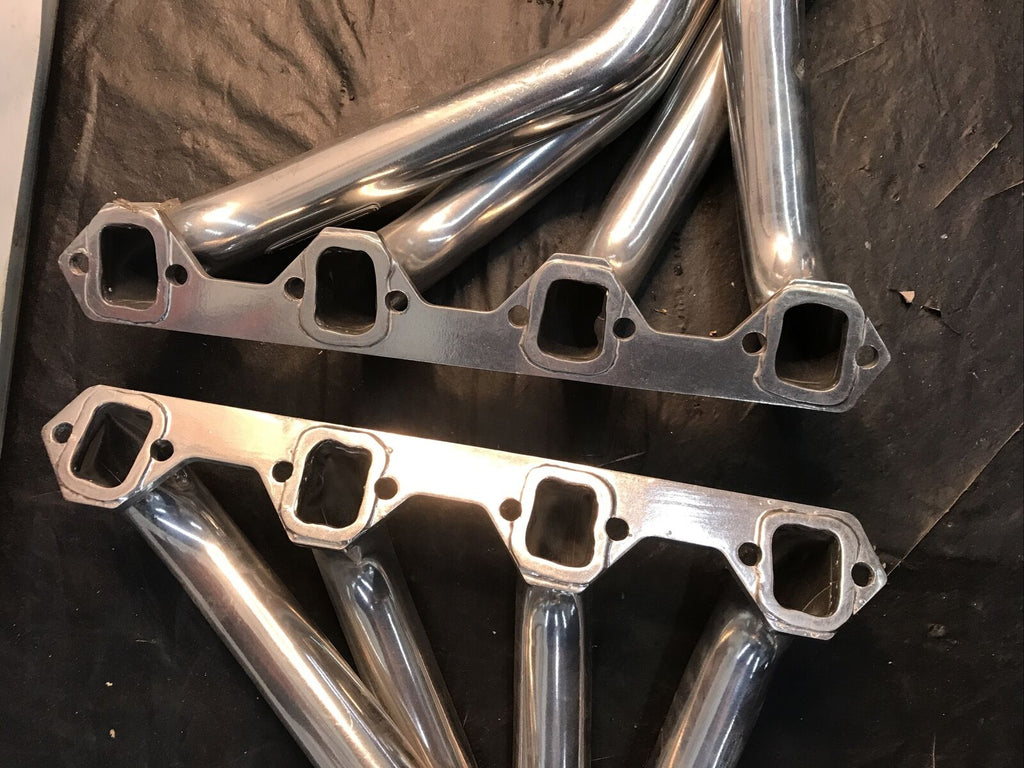

Flange Style:

Standard

Cylinder Head Port Shape:

SAP

Collector Attachment:

3-bolt flange

Collector Diameter (in.):

2.50

Collector Reducers Included:

Collector Reducer Exit Diameter:

2.500 in.

Tuned:

Primary Tube Gauge:

18-gauge

Spark Plug Position:

Angle

Flange Thickness (in.):

0.313 in.

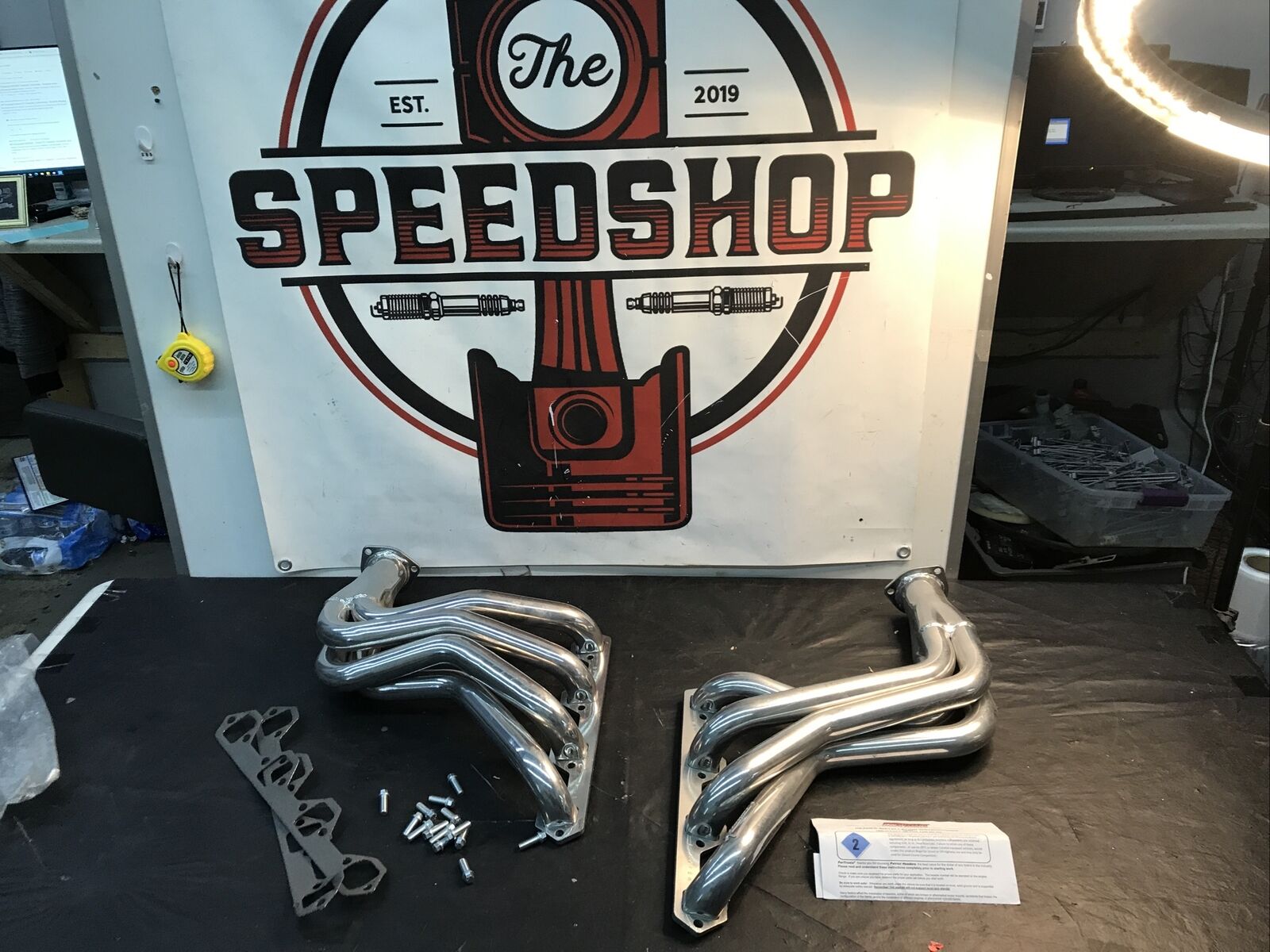

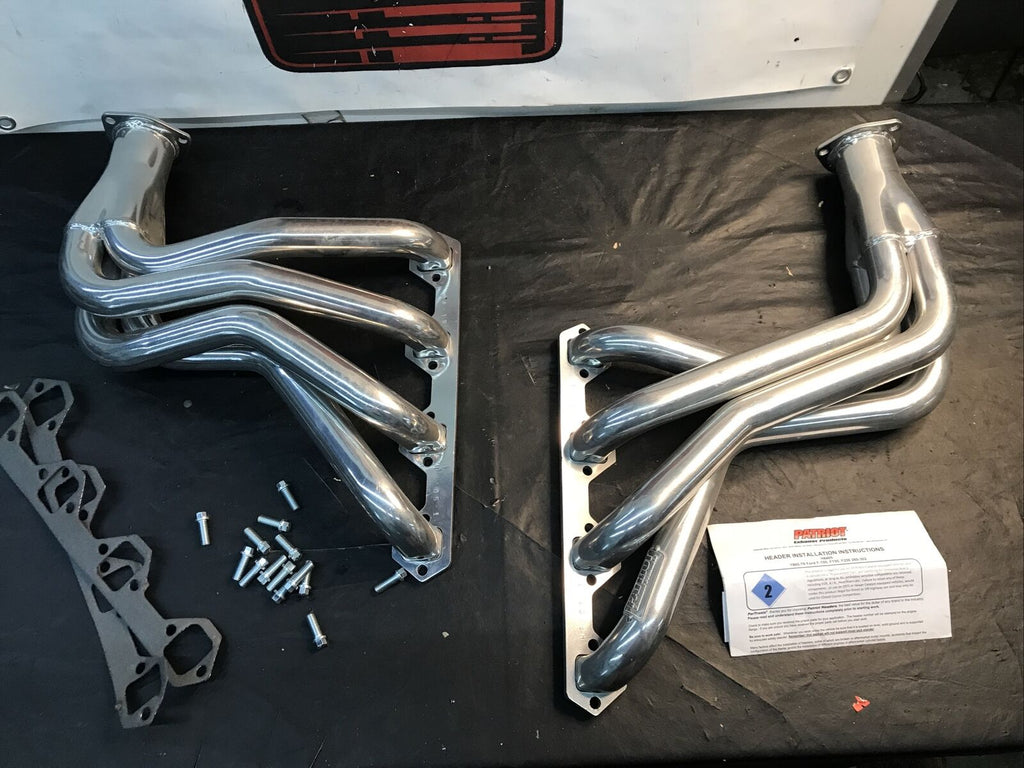

Bolts/Studs Included:

Yes

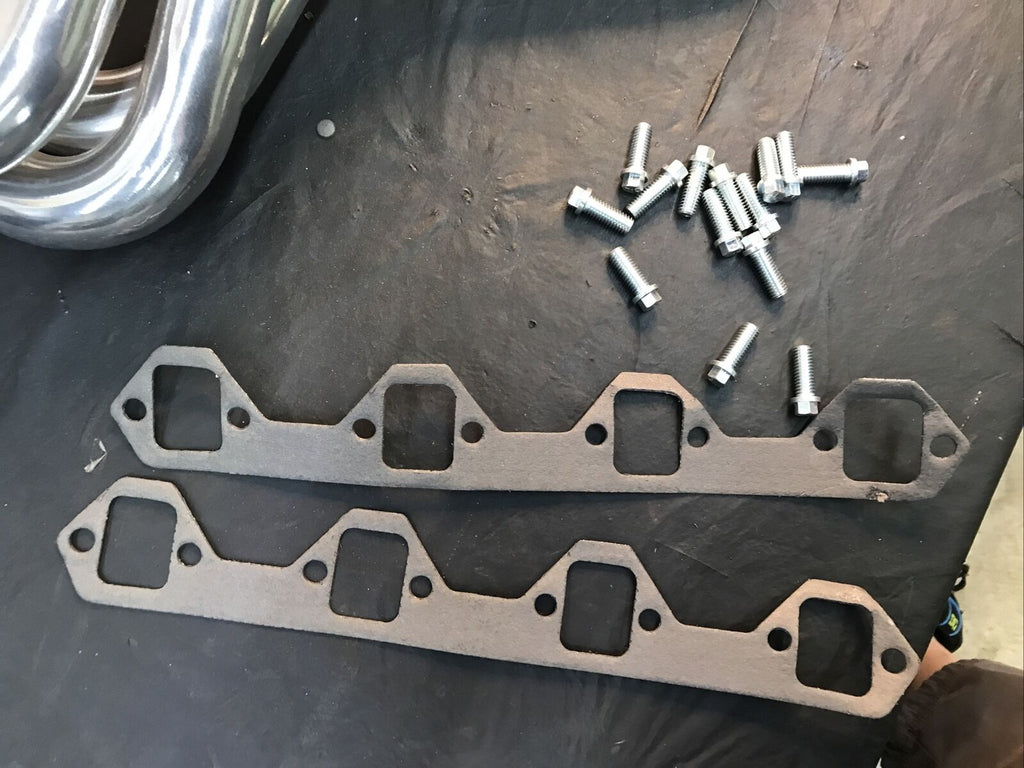

Gaskets Included:

Yes

Crossover Pipe Included:

Catalytic Converter(s) Included:

Motor Mounts Included:

Transmission Mount Included:

Quantity:

Sold as a pair.

Notes:

Will not fit vehicles with C6 transmission, or with air injection. Will not fit GT40P cylinder heads.

Patriot Full-Length Headers

Patriot full-length chassis and fenderwell headers provide the ultimate in performance for street rods and musclecars with high performance engines. The key is their use of long primary tubes, which results in more horsepower and torque than those from the competition. Other features include a close fit with the engine block for maximum chassis and steering clearance, mandrel-bent tubing, and new gaskets and bolts. Unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This includes components like cylinder heads, chassis, steering, motor mounts, body mounts and bushings, etc. If your vehicle is using aftermarket components, parts from other applications, or custom-altered parts, then it is the installer's responsibility to verify fitment.
