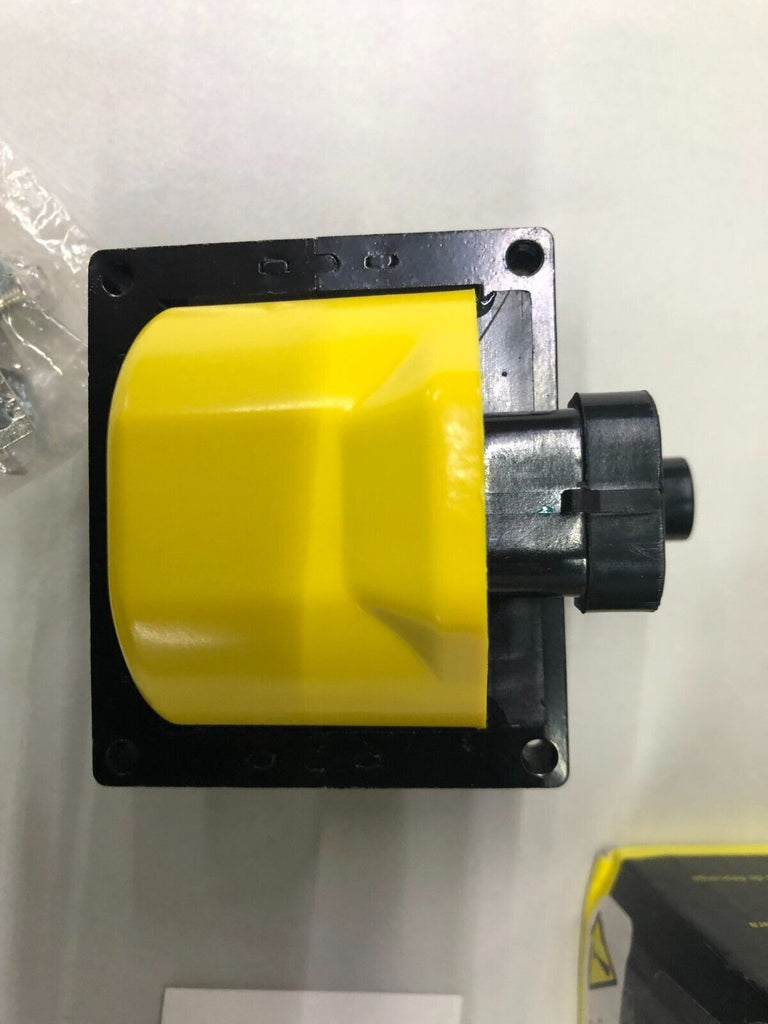

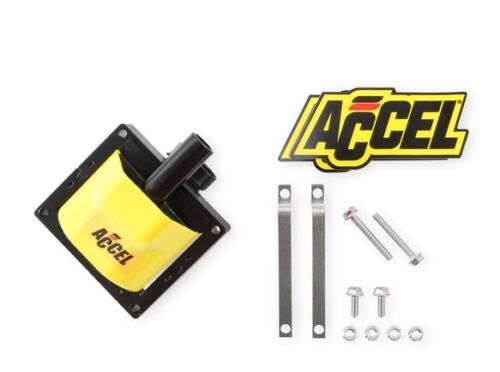

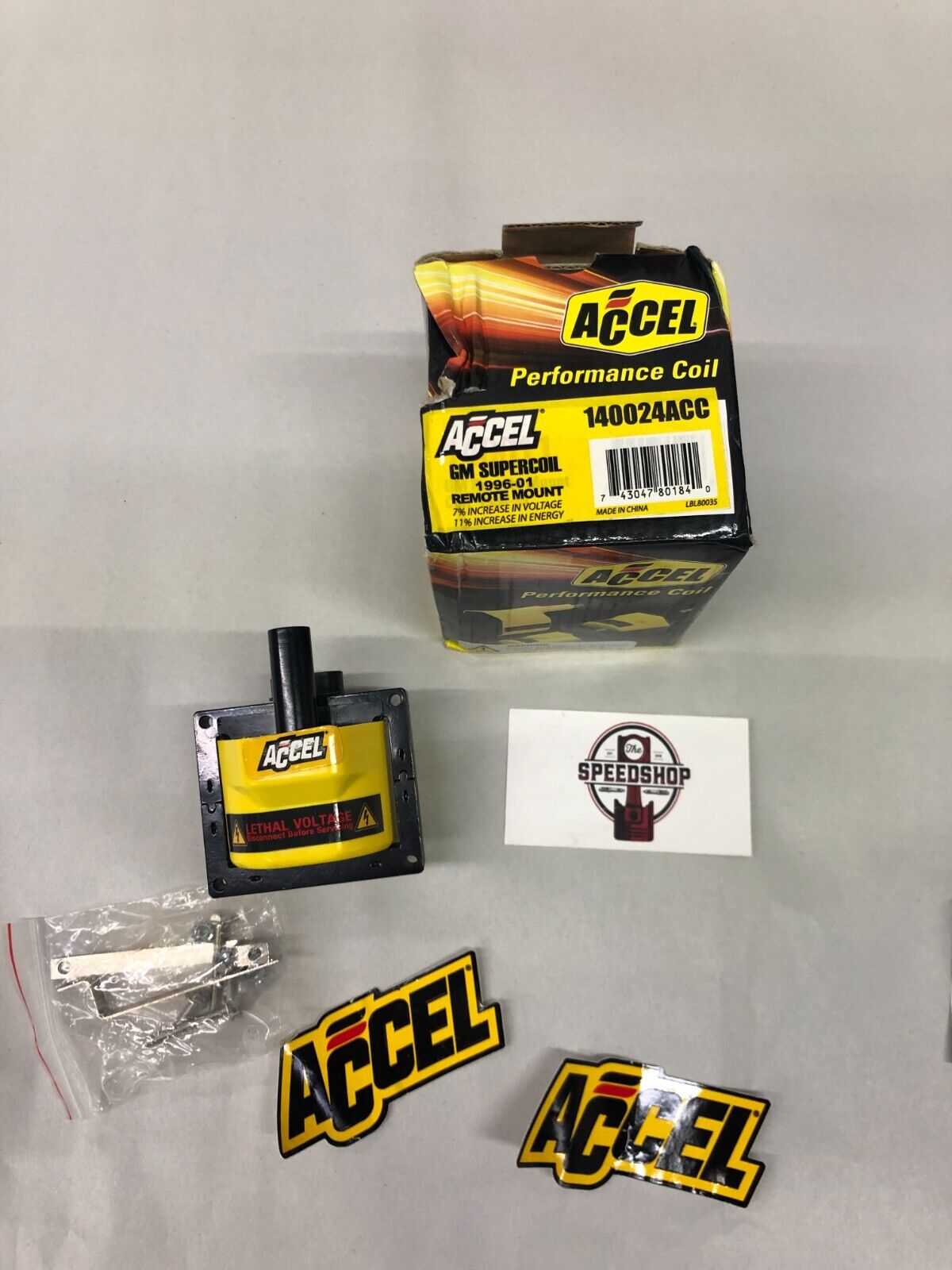

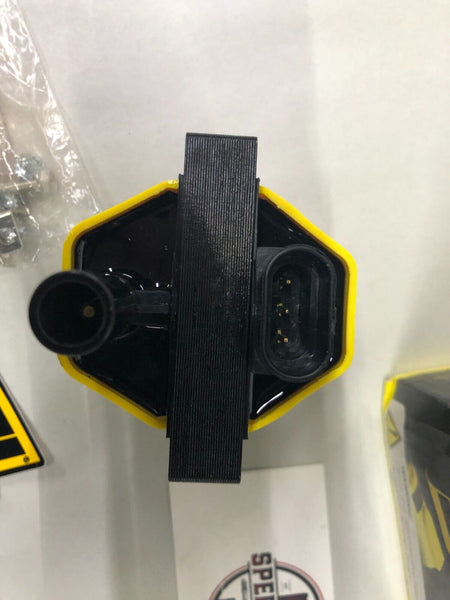

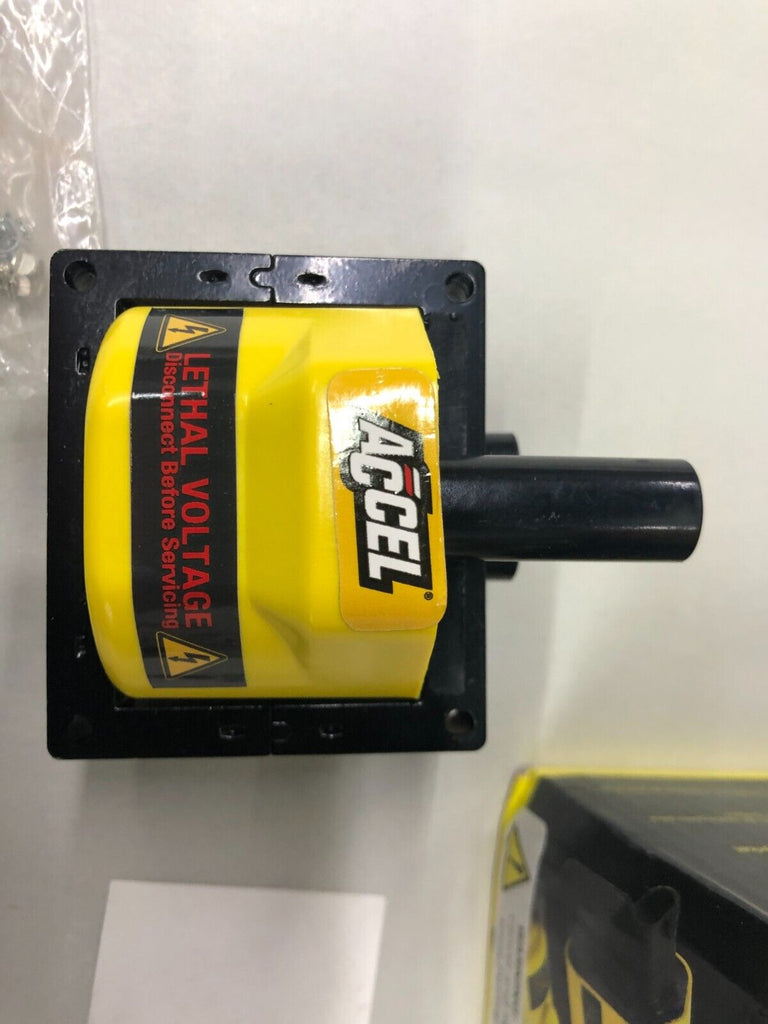

Accel Ignition Coil 140024ACC; Super Coil 48k Volt E-Core for 96-07 Chevy Vortec
Regular price
$49.95
Sale price
$62.95
Accel Ignition Coil 140024ACC; Super Coil 48k Volt E-Core for 96-07 Chevy Vortec
OVERVIEW

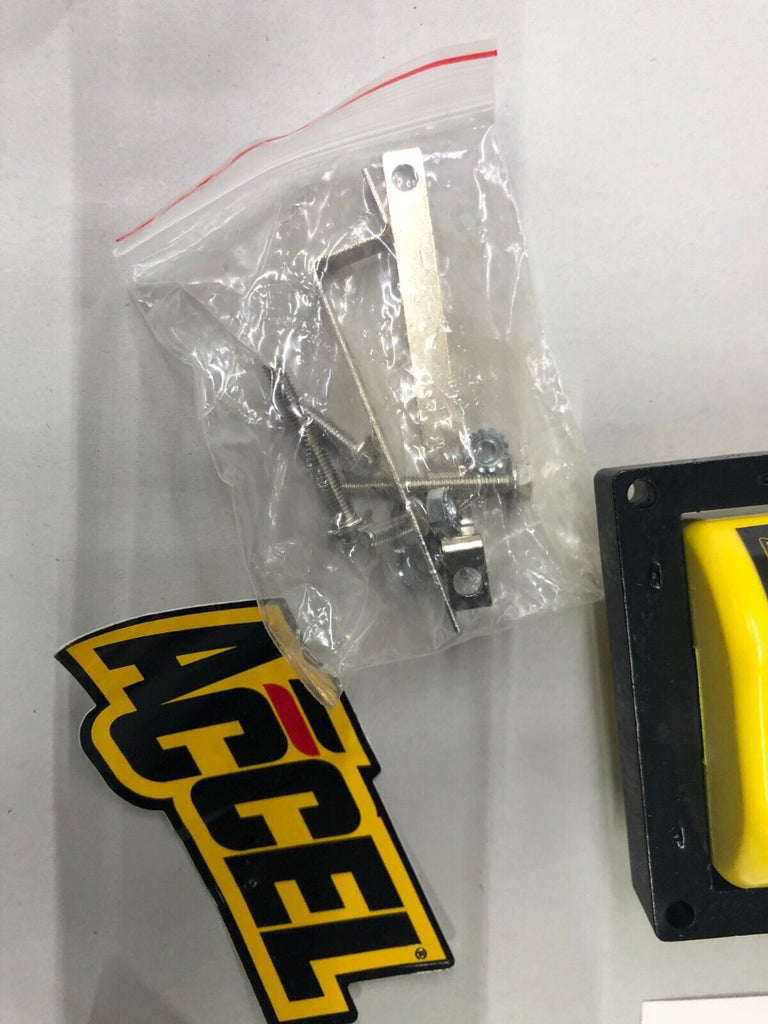

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL Yellow over molded housing. Output is 48,000 volts with 0.2 ohms resistance.
Features:
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- Standard Motor Products SMP Dr-49
- MSD 8231
About ACCEL
With an ever-expanding line of SuperCoils and all the spark plug wires, tune-up kits, and fuel injectors hot rodders have trusted and relied on for years, ACCEL is constantly developing innovative new products designed to push power, speed, and performance.
SPECS
| Application | GM |
|---|---|
| Brand | ACCEL |
| Color | Yellow |
| Emission Code | 2 |
| Maximum Voltage | 48,000 volts |
| Peak Increase in Energy vs. OE | 11% |
| Primary Resistance | 0.2 Ohms |
| Product Type | Ignition Coils |
| Quantity | 1 |
| Quantity Per Pkg. | 1 |
| Secondary Resistance | 6.7 k Ohms |
| Turns Ratio | 92:1 |
| Warranty | Limited 90 Day Warranty |
| Weight | 1.2000 |
| UPC | 743047801840 |
| Part Number | 140024ACC |
